R1 GYTR

Key Features

Features Gallery
  • alt

    998cc 4-cylinder Crossplane engine with titanium Akrapovic exhaust

    The R1 GYTR is equipped with the 998cc 4-cylinder CP4 crossplane engine and a titanium Akrapovič exhaust (new mid-muffler system) for more power and controlled noise output (below 101 dB). And to enhance your performance and experience with the engine, the R1 GYTR features an advanced electronics package.

  • alt

    GYTR® Electronics package

    This R1 GYTR is equipped with a lightweight wiring harness and GYTR® programmable ECU which allow you to set up your bike to achieve the best performance. Its advanced electronics package enables you to modify in a detailed level the slide, lift and engine breaking setting and much more.

  • alt

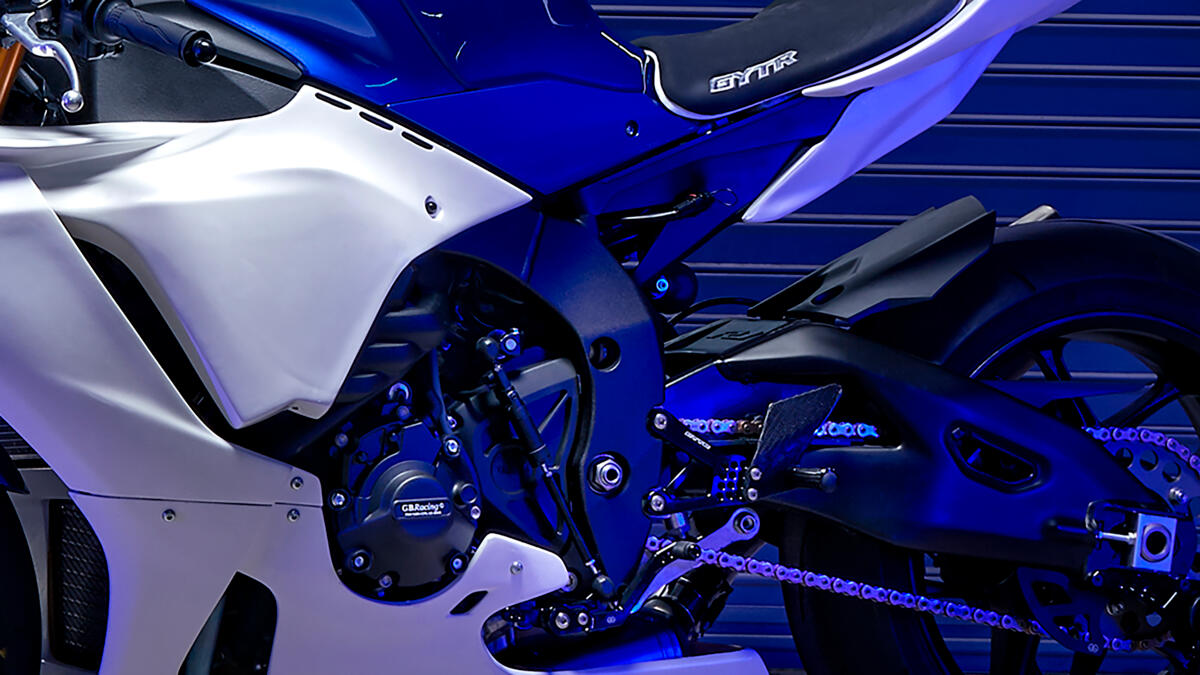

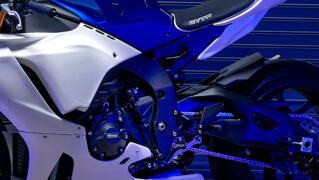

    GYTR® Chassis parts

    R1 GYTR’s race-ready specification includes race handlebars, race rear sets for ultimate body positioning and controllability. And this track machine also comes equipped with a keyless fuel cap, on/off switch and paddock stand hooks. The GYTR® steel brake lines, and OEM calipers equipped with GYTR steel pistons kit, together with Brembo Z04 pads achieve consistent strong braking performance.

  • alt

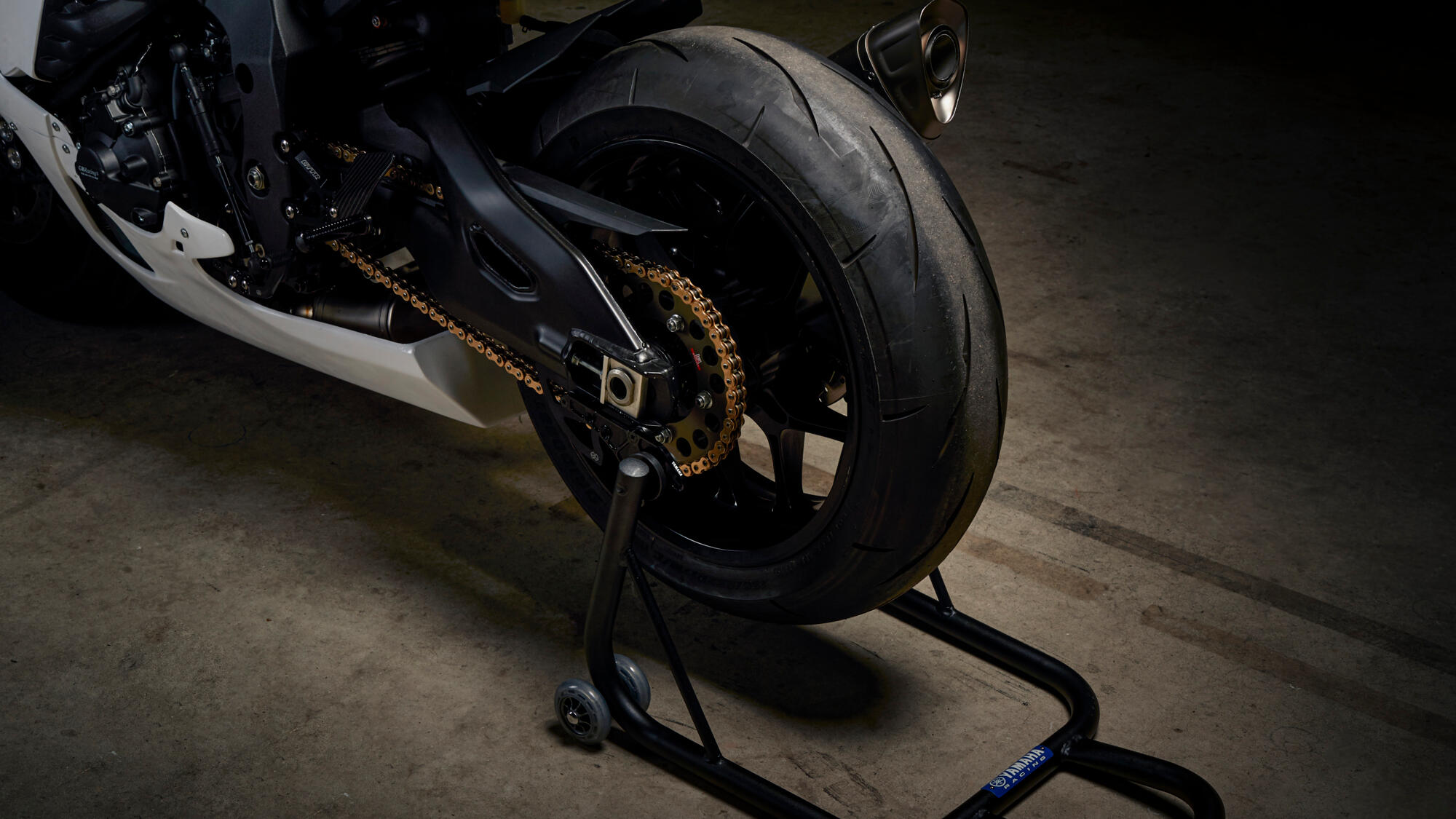

    GYTR® Drive system

    For optimum drive efficiency the R1 GYTR is equipped with a race specification 520 chain and runs with a 15T/42T front/rear sprocket combination. And there are also a wider range of front and rear GYTR® sprockets available to adapt to your preference and track, that you can buy at your Yamaha dealer.

  • alt

    GYTR® Bodywork

    The R1 GYTR is supplied with a lightweight glass fibre carbon reinforced race cowling, specifically developed for easy installation and optimised aerodynamics.

  • alt

    Lightweight, high performance CP4 engine

    The 998cc high performance CP4 engine features exclusive crossplane crankshaft technology developed from Yamaha’s winning MotoGP® race bike. Its uneven firing sequence delivers linear torque for outstanding performance and high levels of rear wheel traction, while sophisticated electronic control technologies enable you to push even harder to the chequered flag.

  • alt

    Compact Deltabox frame and lightweight magnesium subframe

    Yamaha is a world leader in aluminium chassis design, and the R1 GYTR’s ultra-compact Deltabox frame with its lightweight magnesium subframe delivers outstanding cornering precision with high speed stability. The 10-spoke magnesium wheels reduce unsprung weight and minimise the rotational mass for responsive suspension action and easy directional changes.

  • alt

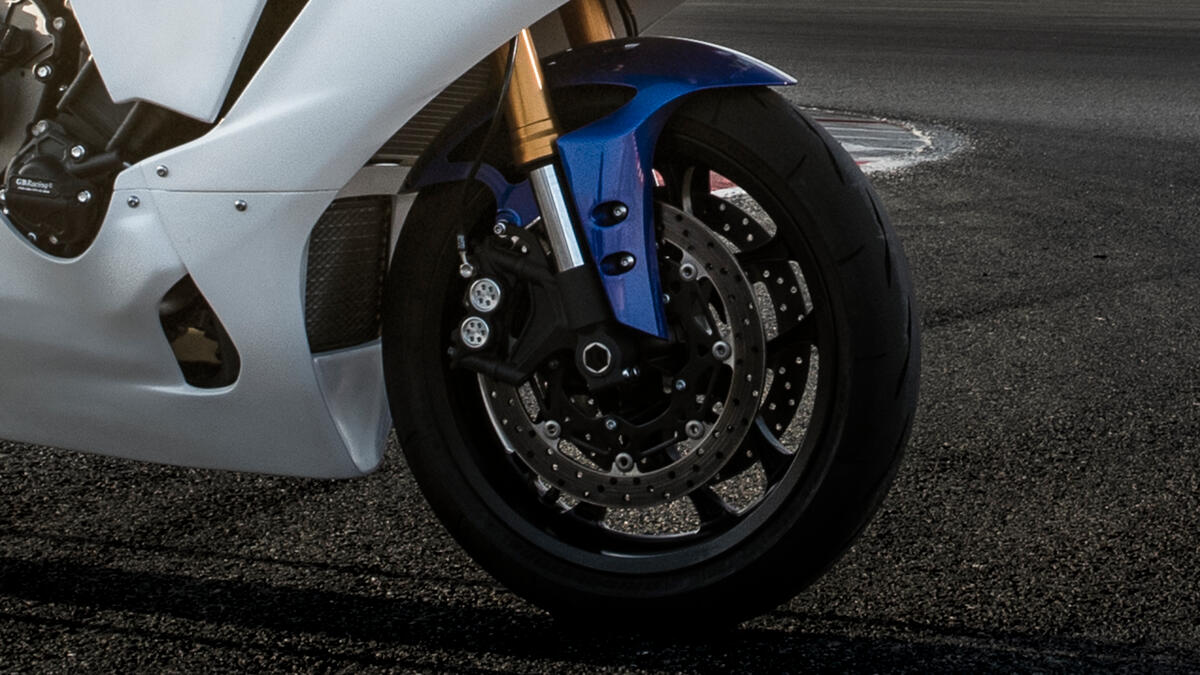

    43mm KYB® front forks

    Equipped with 43mm inner tubes, the industry-leading KYB® front forks provide outstanding feel that inspires a high level of front-end confidence. For quick and easy set-up, the preload, rebound and compression damping settings are made via the fork top adjusters.

  • alt

    Lightweight aluminium fuel tank

    The R1 GYTR is constructed using many lightweight components, and includes a sculpted fuel tank that enables you to tuck in closer to it for higher aerodynamic efficiency.

  • alt

    Wide range of GYTR® PRO components to tailor your R1 GYTR

    The R1 GYTR’s specification can be taken to an even higher level by fitting a selection of other GYTR® or high-tech GYTR PRO components that have been developed by Yamaha Racing Engineers. Designed for the winning WorldSBK® R1 and for any riders who compete at the highest levels of motorsport to tailor their racing machine, the GYTR PRO line includes a carbon subframe kit, swingarm and fuel tank kits, carbon cowling set, Marelli electronics, screen, dashboard and more to be discovered at your GYTR PRO SHOP.

Technical Specifications

Download factsheet
  • Engine
    Engine type
    4-stroke, Liquid-cooled, 4-cylinder, DOHC, 4-valves
    Displacement
    998cc
    Bore x stroke
    79.0 x 50.9mm
    Compression ratio
    13,0 : 1
    Lubrication system
    Wet sump
    Clutch type
    Wet, Multiple Disc
    Ignition system
    TCI
    Starter system
    Electric
    Transmission system
    Constant Mesh, 6-speed
    Final transmission
    Chain
    Fuel system
    Fuel Injection
  • Chassis
    Frame
    Aluminium Deltabox, Diamond
    Caster angle
    24°00
    Trail
    102mm
    Front suspension system
    Telescopic fork
    Rear suspension system
    link suspension, Swingarm
    Front travel
    120mm
    Rear travel
    120mm
    Front brake
    Hydraulic dual discs, Ø320mm
    Rear brake
    Hydraulic single disc, Ø220mm
    Front tyre
    120/70ZR17M/C (58W) Tubeless
    Rear tyre
    190/55ZR17M/C (75W) Tubeless
  • Dimensions
    Overall length
    2.055mm
    Overall width
    690mm
    Overall height
    1.165mm
    Seat height
    855mm
    Wheel base
    1.405mm
    Minimum ground clearance
    130mm
    Wet weight (including full oil and fuel tank)
    201kg
    Fuel tank capacity
    17L
    Oil tank capacity
    4.9L
