Sidewinder SRX LE EPS

Key Features

Features Gallery
  • alt

    Yamaha Electric Power Steering (EPS)

    Electric Power Steering reduces steering effort and increases the precision of handling. The latest-generation EPS system is even more impressive and the Sidewinder SRX LE EPS makes the most of its lighter weight and other technical advancements to deliver an effortless, relaxing riding experience without equal.

  • alt

    998cc Genesis Turbo 4-stroke engine

    The most advanced and powerful engine ever to hit the snowmobile industry, this smooth, flexible 3-cylinder unit breathes easily at any altitude - in any conditions. Massive torque and pulling power are assured across the rev band, with instant throttle response and no 'turbo lag'. A genuine power revolution in the 'real' 180HP class.

  • alt

    Yamaha YSRC clutch system

    Our YSRC clutch is designed to cope with the massive torque and huge power output of the Yamaha 998cc Genesis® Turbo triple. Shifting is extremely efficient with a fast backshift response to match. The high strength castings, efficient cooling and finely tuned settings combine to ensure excellent V-belt durability and low maintenance.

  • alt

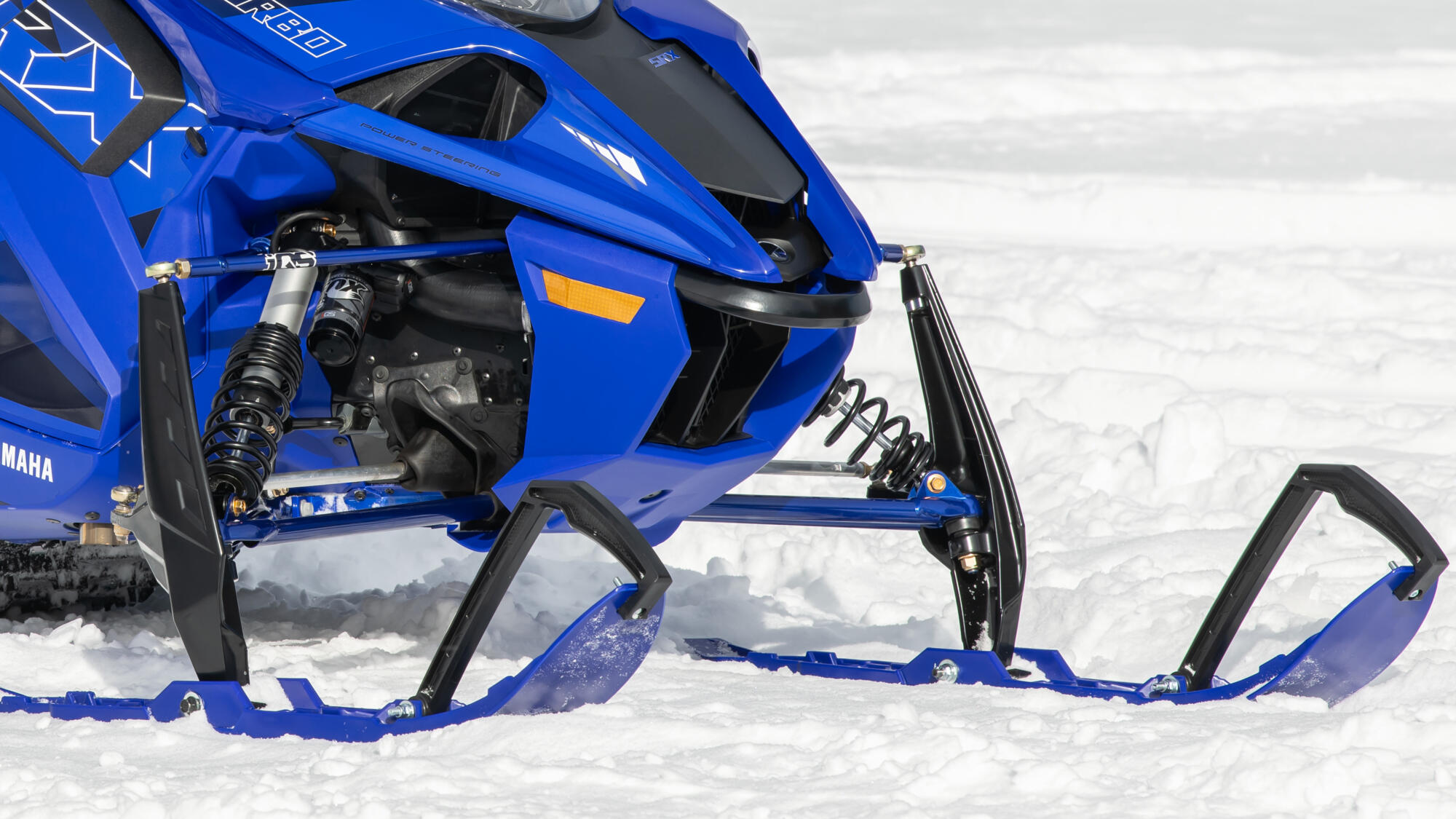

    ARCS front suspension - FOX® 1.5 ZERO IQS shocks

    The lightweight spindles of the Advanced Rolling Centre Suspension (ARCS) work seamlessly with the intelligent Quick Shift, electrically adjustable FOX® 1.5 ZERO iQS shocks to deliver ultra-responsive handling. The result is a supremely sturdy suspension set up that’s built to tackle any trail or track, however demanding.

  • alt

    "Stryke" Single Keel Ski

    The Yamaha design, single keel ski strikes the elusive balance between lightweight steering effort and precision handling in a wide range of snow conditions. Unique, staggered carbides enhance steering response and the special shim pad assembly works with the rubber saddle block to adjust the carbide pressure point. Ski stance is also easily adjustable.

  • alt

    Dual Shock SR 137 rear suspension

    The Sidewinder SRX LE EPS offers an impressive range of easily adjustable tuning options, thanks to its intelligent FOX® iQS shock and torsion spring set-up.

  • alt

    Fox® Zero iQS Shock Package

    The Fox® Intelligent Quick Shift (iQS) shocks - up front and on the rear arm - can be adjusted on the fly, with the bar-mounted switch. Damping is in three easily detectable steps, from soft to firm, with a reaction time of less than a second! The rider can therefore instantly adjust the ‘feel’ of the suspension to the actual snow conditions. Once activated, the shock setting is clearly displayed in the digital gauge.

  • alt

    Low Profile Ripsaw Track by Camso®

    The agile SRX uses a multi-ply track with a low profile that’s 137 inches in length by 1 inch in height - in a 2.86, fully clipped configuration. The lower lug profile yields less wind resistance at high speed, while the fully clipped track reduces friction to provide maximum top speed performance. Additionally, the low lug reduces weight and stress on the track for improved durability and performance at sustained high speeds.

  • alt

    Deluxe instrument panel with dual digital displays

    Multiple sensors ride on board with you, continuously monitoring engine data to provide essential rider information. In addition to speed, rpm, fuel, oil temperature and pressure, a wide range of trip-related data can be selected. Like a clock with Hours Run meter, Distance Travelled information - and even an altimeter!

  • alt

    J-hook handlebar and riser

    The special lightweight aluminum riser sets the handlebar at precisely the right height for maximum control. This pivot-adjustable riser also allows you to choose the optimum angle for your own riding position. The straight J-hooked handlebar also makes control easier and gives precise feedback from the front suspension.

Technical Specifications

Download Factsheet
  • Engine
    Type / Displacement
    4 Stroke / 998cc
    Bore x stroke
    80.0 mm x 66.2 mm
    Turbo boosted 41 mm Mikuni x 3, Fuel Injection, Liquid Heated
    Intake design
    Ignition system
    Digital T.C.I. w/T.P.S.
    Clutch / transmission
    YSRC, Variable Ratio, Electronic Shift Reverse, Magnesium Chaincase & Cover
    Disc brake system
    Radial Master Cylinder Hydraulic Brake / Light Weight Disc on Drive Shaft
  • Suspension
    Front suspension system
    Independent double wishbone
    Front shocks
    FOX® 1.5 ZERO iQS w/ SRX Dual Rate Springs
    Front travel
    254 mm
    Rear suspension system
    Dual Shock SR 137 Torsion
    Rear shocks
    Monotube Alum-HP GAS 1.5 /FOX® 2.0 Zero iQS
    Rear Travel
    343 mm
  • Measures / Dimensions
    Overall height
    1,360 mm
    Overall length
    3,175 mm
    Overall width
    1,230 mm
    Track W x L x H (")
    15 " x 137 " x 1.0 "
    Track W x L x H (mm)
    381 mm x 3,480 mm x 25.4 mm
    Track Type
    Camso® Ripsaw™
    Ski stance (ctr. to ctr.)
    1,064 - 1,090 mm
    Fuel tank capacity
    33.6 L
  • Features
    Electric start
    Hand & thumb warmers
    Headlight watts, type
    60/55W LED
    DC output
