Viking EPS

Key Features

Features Gallery
Image Thumbnail
  • alt

    High-torque 686cc engine

    The high-torque 686cc single-cylinder engine produces plenty of controllable power for effective off road transportation. For added confidence on slippery downhill slopes the Ultramatic® transmission features an engine braking function - while the 2WD, 4WD and Diff-lock modes can be quickly selected to suit different surface conditions.

  • alt

    Electronic Power Steering (EPS)

    Even with 3 passengers and a full cargo load on board, the Electronic Power Steering (EPS) ensures that the steering feels light even when fully laden or when driving in heavy soils like clay. When 4WD with Diff-lock is selected the EPS switches automatically to a second program designed to optimize the steering characteristics.

  • alt

    Electronic Fuel Injection (EFI)

    The reliable 686cc 4-stroke single-cylinder engine features an advanced Electronic Fuel Injection system that ensures efficient combustion for good throttle response. Together with the forged piston and pent roof combustion chamber design, the EFI enables the Viking engine to produce gutsy torque at low rpm with strong high rpm performance.

  • alt

    3 mode On-Command® system

    The Viking is designed to be used on a wide variety of surfaces, and the 3-mode On-Command® system offers 2WD, 4WD or 4WD with Diff-lock options to suit different terrain and weather conditions. The simple rotary-type switch enables the driver to select their chosen drive mode in seconds.

  • alt

    Conveniently positioned controls

    For easy operation the Viking is equipped with a central instrument console, while the electric starter switch, shift lever and handbrake are located to the right of the 3-spoke steering wheel. And for added comfort and safety there's a foot space partition to prevent the central passenger's feet from interfering with the driver's feet.

  • alt

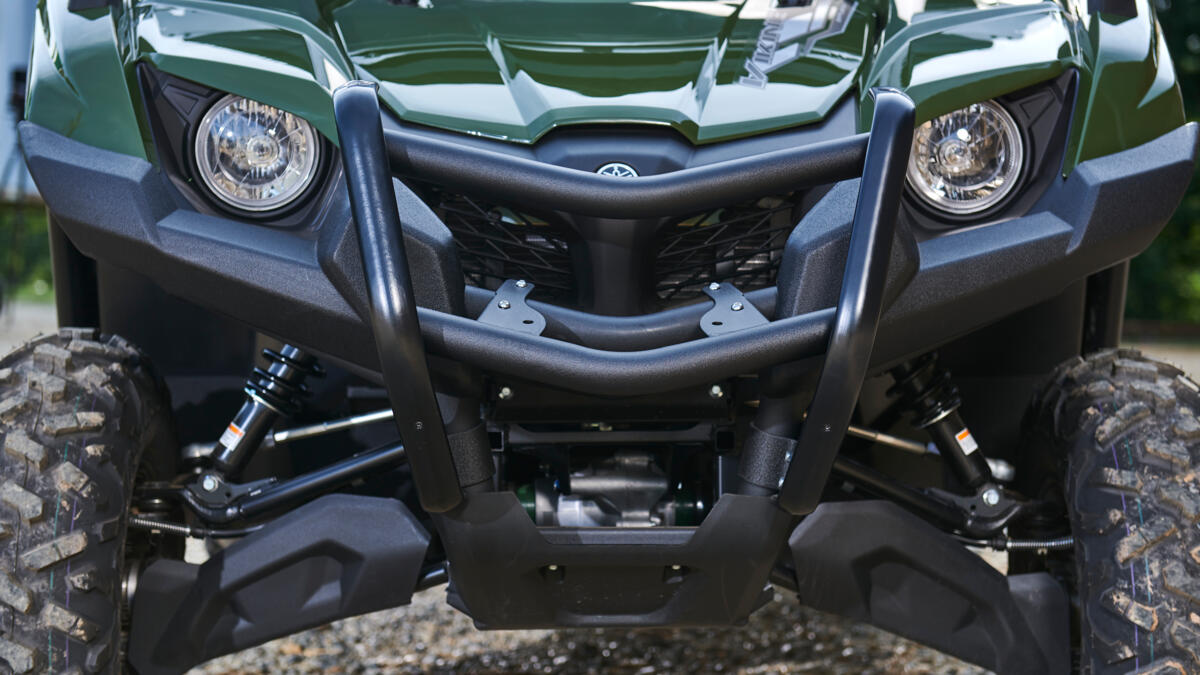

    Front and rear double wishbone suspension

    For responsive handling combined with a comfortable ride for all 3 people on board, the Viking is equipped with independent double wishbone suspension at the front and rear. This rugged system allows each wheel to follow the terrain and maintain traction on extremely rough ground, allowing you to traverse extreme landscapes.

  • alt

    3-seater / Walk-through floor

    The low noise cabin features an innovative 3-seat layout with a central seat inclined 5 degrees further back than the outer seats, giving each passenger more arm and shoulder room. There's also a flat walk-though floor that gives easy access and also allows the driver to step in from either side.

  • alt

    Easy maintenance

    The Viking has been designed to be robust and easy to maintain, and the location of the engine beneath the cargo bed makes it possible to gain access to the powerplant in seconds. Together with the easily accessible front-mounted components located under the hood lid, the Viking's design ensures that routine service times and costs are competitive.

Technical Specifications

Download Factsheet
  • Engine
    Engine type
    Single cylinder, 4-stroke, Liquid-cooled, SOHC, 4-valves
    Displacement
    686cc
    Bore x stroke
    102.0 mm x 84.0 mm
    Compression ratio
    10.0 : 1
    Lubrication system
    Wet sump
    Fuel system
    Electronic Fuel Injection
    Ignition system
    TCI
    Starter system
    Electric
    Transmission system
    Yamaha Ultramatic®, CVT, Centrifugal clutch
    Drive system
    On-Command® 2WD, 4WD, 4WD with Diff-lock
    Final transmission
    Shaft
  • Chassis
    Front suspension system
    Independent double wishbone, 205 mm wheel travel
    Rear suspension system
    Independent double wishbone, 205 mm wheel travel
    Front brake
    Dual hydraulic disc
    Rear brake
    Dual hydraulic disc
    Front tyres
    AT25x8-12NHS
    Rear tyres
    AT25x10-12NHS
  • Dimensions
    Overall length
    3,100 mm
    Overall width
    1,570 mm
    Overall height
    1,925 mm
    Wheelbase
    2,135 mm
    Min. turning radius
    4.5 m
    Minimum ground clearance
    300 mm
    Wet weight (including full oil and fuel tank)
    613 kgs
    Fuel tank capacity
    36.7 litres
    Oil tank capacity
    2.6 litres
    Seat height
    792 mm
  • Loading limits
    Cargo bed
    272 kg
  • Additional feature
    Steering System
    Ackermann-type with Dual Mode Electric Power Steering
