High power, big torque
Yamaha 4-stroke ATVs provide high levels of torque even at low rpm that ensures terrain-hugging traction, even in difficult conditions. The YFM700R's engine produces high levels of power and torque - and its fuel injection system gives increased fuel economy and reduced emissions.

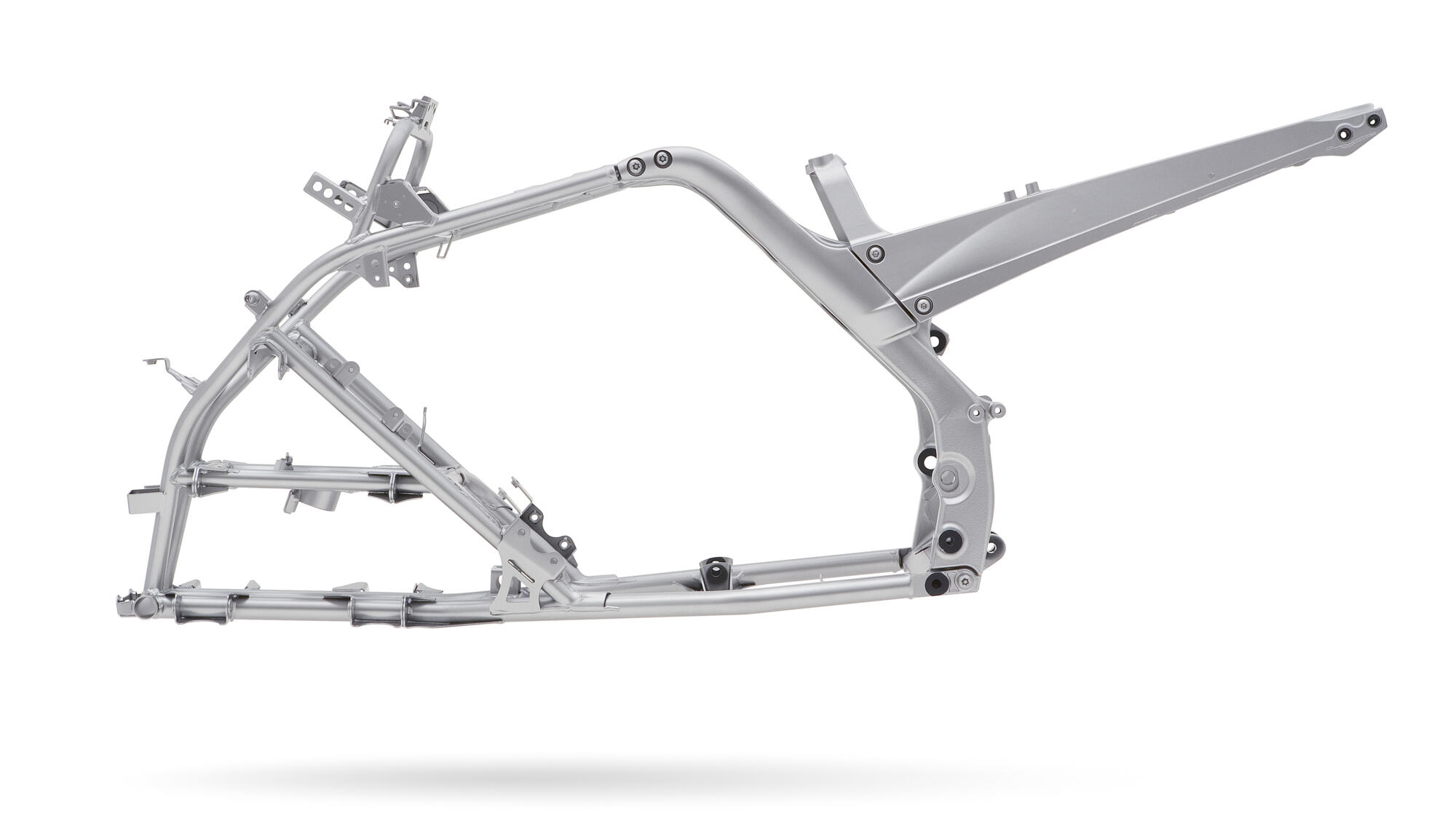

Extra-strong hybrid chassis
For the kind of strength that withstands every knock and bump, the state-of-the-art hybrid chassis combines a steel front section with an aluminium rear section and a detachable subframe. And for comfortable and controllable handling, there's a lightweight cast aluminum swing arm operating an adjustable shock with optimized damping settings.
5-speed transmission with reverse
To optimize the remarkable performance potential of the high powered engine, the YFM700R drives through a slick-shifting 5-speed transmission. Whatever the terrain, this durable gearbox and smooth multi-plate clutch gives you total control - while the reverse gear gives added maneuverability in tight situations.

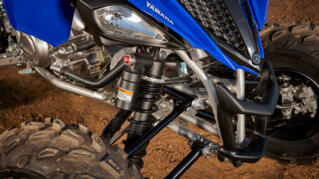

The long-travel front suspension is set up with KYB Piggybacks shocks at the front and rear, both with fully adjustable Hi and Low speed compression - and single rebound stroke. You can tune the suspension to your personal preference to suit your ride on all types of surfaces. The large diameter 22-inch front tyres soak up the bumps and are precise on your steering input.
Lightweight aluminium wheels and calipers
Aluminium wheels and compact calipers contribute to the YFM700R's SE low unsprung weight that ensures responsive suspension characteristics. Operating on ventilated discs, the 2-piston front brake calipers - combined with the YFZ450R-type 2-piston rear caliper - deliver smooth and controllable stopping power for riding confidence.
Piloting an ATV is a fun, physical activity that uses unusual combinations of muscles. Yamaha ATVs are designed to be straightforward to use, and comfortable for the widest possible range of body shapes and sizes. The front end design gives plenty of knee clearance for improved body movement, while retaining the aggressive, streamlined YFM700R SE styling.
The race-oriented YFM700R SE comes with an exclusive range of performance enhancing equipment, including a high compression cylinder head, race-spec fuel mapping and high-lift cam. And with its high-tensile steel upper 'A' arms and fully-adjustable front piggyback shocks, this high-tech ATV comes ready to win!
Technical SpecificationsDownload Factsheet
- Engine type
- Single cylinder, Liquid-cooled, 4-stroke, 4-valves
- Bore x stroke
- 102.0 mm x 84.0 mm
- Compression ratio
- 10.0 : 1
- Lubrication system
- Dry sump
- Fuel system
- Fuel injection, 44 mm
- Ignition system
- Starter system
- Transmission system
- 5 speed & reverse, wet multiplate clutch
- Drive system
- Final transmission
- Sealed O-ring chain, eccentric adjustment
- Front suspension system
- KYB Piggy Back with Hi and Low speed compression & single rebound adjustment, Independent double wishbone, threaded preload adjustable spring, 230 mm wheel travel
- Rear suspension system
- KYB Piggy Back with Hi and Low speed compression & single rebound adjustment, threaded preload adjustable spring, Cast aluminium swingarm, 256 mm wheel travel
- Front brake
- Dual ventilated disc with hydraulic twin piston callipers
- Rear brake
- Ventilated wave-type disc with hydraulic callipers
- Front tyres
- Rear tyres
- Overall length
- 1,845 mm
- Overall width
- 1,155 mm
- Overall height
- 1,115 mm
- Seat height
- 830 mm
- 1,280 mm
- Minimum ground clearance
- 115 mm
- Wet weight (including full oil and fuel tank)
- 192 kg
- Fuel tank capacity
- 11.0 litres
- SE/LE Features
- Painted Body / Piggy back, 3 way adjustable shock specs / wheel trim
