225hp V6

Key Features

Features Gallery
Image Thumbnail
  • alt

    24-valve, 4.2 litre 60º V6 with DOHC, EFI & VCT

    An advanced, lightweight powerhead design features plasma-fused, sleeveless cylinders, double overhead camshafts (DOHC) and 4 valves per cylinder. Variable camshaft timing (VCT) delivers increased combustion efficiency across the RPM range. This combination of advanced technologies gives class-leading horsepower-per-litre.

  • alt

    Latest cylinder technology - large displacement with low weight

    The Plasma fusion process on the cylinder walls is 60% harder than steel, but this advanced technology also offers lower weight, better cooling and less friction. The result is the largest displacement engine in the industry, yet with the lowest weight.

  • alt

    Electronic ‘Drive-by-Wire’ throttle/shift and Trolling RPM control

    The optional Digital Network System can bring you the most comfortable, enjoyable control you've ever experienced, including automatic engine synchronisation in twin/triple installations and control of engine speed for trolling. A tachometer button adjusts the RPM in simple 50 RPM steps between 600 and 1000.

  • alt

    One-touch 'Start/Stop' control for multiple engines

    Just pushing a single button allows the engines to be started or stopped instantly in multi-engine installations. The stylish and practical one-touch 'Start/Stop' control switch panel is used in conjunction with the main key switch.

  • alt

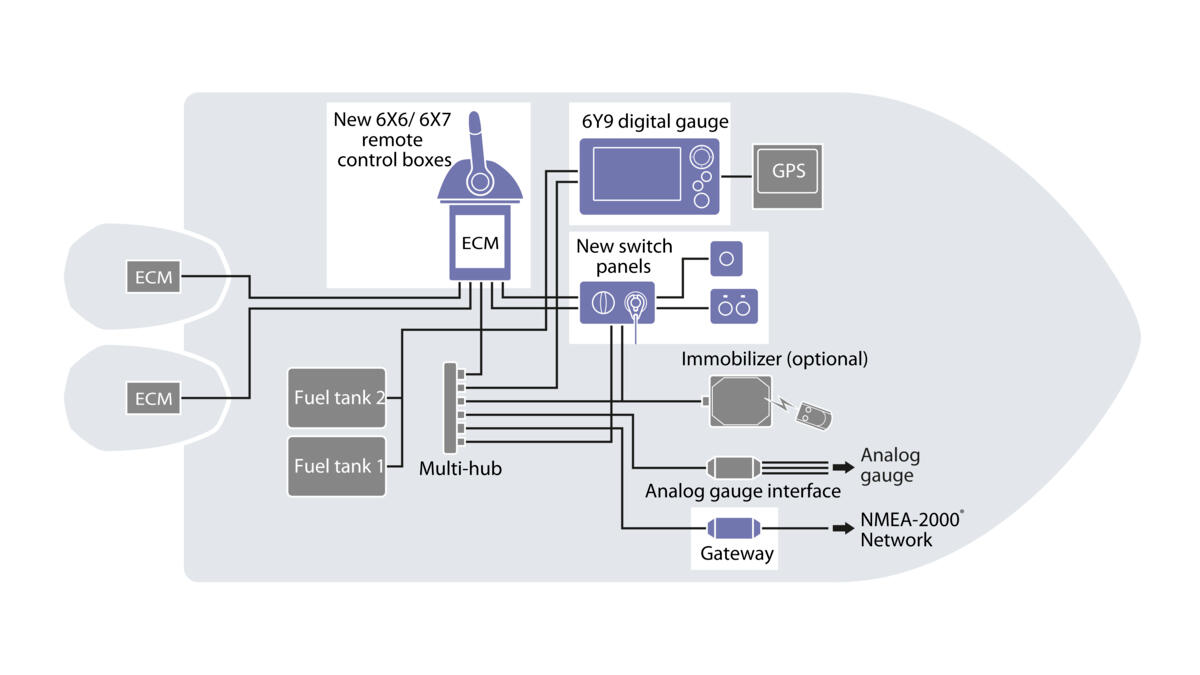

    Digital Network System II

    The Yamaha Digital Network System II is available for all these engines. It features the latest 6Y9 gauges, a high-resolution colour LCD display, a choice of push-button 'Start/Stop' panels, control boxes, accessories, and an NMEA-2000® gateway. This advanced system can easily be configured for single, twin or triple engine applications.

  • alt

    SDS (Shift Dampener System)

    First introduced for our larger V8 & V6 models, Yamaha's patented Shift Dampener System (SDS) is a great feature that significantly reduces the 'clunk' sound normally associated with moving between gears. A splined rubber hub and aft washer absorb noise and vibration, in a carefully engineered solution that gives smoother, quieter gear shifts.

  • alt

    Yamaha Customer Outboard Protection (Y-COP) option

    The optional Y-COP immobiliser system is simple, easy to use and highly effective – a neat and simple remote control locks and unlocks the engine at the push of a button. This prevents your outboard engine being taken for any unauthorised joyrides, offering you peace of mind when leaving your boat unattended.

  • alt

    Micro-computer ECM (Engine Control Module)

    This micro-computer is the ‘brain’ hidden inside your engine. It constantly monitors data inputs and settings, ensuring smooth running and optimised ignition timings – as well as automatically activating warning lamps and protection systems. A handy computer access port allows an authorised Yamaha dealer to diagnose any problems.

Technical Specifications

Download Factsheet
  • Engine
    Engine type
    4-stroke
    Displacement
    4169 cm³
    No. of cylinders/Configuration
    V6 (60°), 24-valve, DOHC with VCT
    Bore x stroke
    96.0 mm x 96.0 mm
    Prop shaft output at mid range
    165.5 / 5,500 rpm
    Full Throttle Operating Range
    5,000 - 6,000 rpm
    Lubrication system
    Wet sump
    Fuel Induction System
    EFI
    Ignition / advance system
    TCI
    Starter system
    Electric with Prime Start™
    Gear ratio
    1.75 (21:12)
  • Dimensions
    Transom height
    X643U:770mm
    Weight with propeller
    F225FETX: 260.0kg,FL225FETX: 260.0 kg,F225 FETU: 268.0kg
    Fuel tank capacity
    -
    Oil pan capacity
    6.3litres
  • Additional Features
    Control
    Drive By Wire (DBW)
    Trim & Tilt method
    Power Trim & Tilt
    Light coil / Alternator Output
    12V -70Awith rectifier/regulator
    Engine immobilizer
    YCOP optional
    Propeller
    Optional
    Counter Rotation Model
    Available (ETX)
    Variable Trolling Speed
    With DN Gauges or m-f tiller handle
    Dual Battery Charging System
    Optional
    Shift Dampener System (SDS)
    Optional
    Remark
    The kW data in this sheet is based on the ICOMIA 28 standard, measured at the prop shaft
