YZ125

Основные особенности

Особенности Галерея
Миниатюра изображения
info Professional rider with advanced skill depicted on a closed area.
  • alt

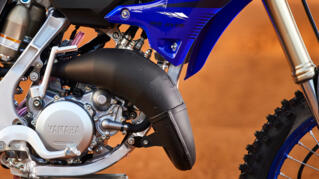

    Most powerful YZ125 engine

    The high-tech 125cc 2-stroke engine is the most powerful unit ever used on the YZ125. Equipped with Yamaha’s famous YPVS that gives instant response and excellent useability across the rpm range – and featuring lightweight race-bred internals – it’s destined to take you to the victorYZone!

  • alt

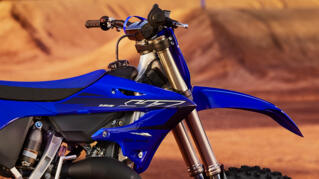

    Ultra-slim bodywork

    The athletic bodywork is ultra-slim, with the area between the rider’s knees the narrowest kit’s ever been on a YZ125 – and this athletic and modern body design underlines the bike’s lightness and compactness. These slim dimensions give a high level of rider mobility and reinforce this lightweight racer’s feeling of agility.

  • alt

    Keihin Powerjet carburettor

    The YZ125 is equipped with a Keihin PWK 38.1mm carburettor featuring a solenoid controlled Powerjet that instantly delivers its fuel/air mix for even more explosive performance, giving a real advantage out of the gate and when accelerating hard out of corners. A TPS (Throttle Position Sensor) and 3D map controlled CDI ensure optimized ignition timing, while the V-Force reed valve assembly ensures optimum intake efficiency at all engine speeds.

  • alt

    Smooth shifting 6-speed transmission

    Every second counts and for reduced lap times the YZ125 runs with a super-smooth shifting 6-speed transmission that enables you to accelerate efficiently and stay out in front. Transmission ratios have been carefully chosen by Yamaha’s engineers to maximize race performance and power output in all conditions.

  • alt

    High efficiency air intake

    The complete intake system has been developed to provide the smoothest possible flow of air into the 38.1mm carburettor for a high level of engine efficiency. Components including the seat base, rear frame and sidepanels are all designed to reduce air resistance for stronger and more useable power output.

  • alt

    Race-developed ergonomics

    Engine performance is just one element of being competitive – the ability to handle the power effectively and take total control of the chassis is also vital. A flat seat with a low front combined with a slim tank and narrow radiator shrouds make it easy to shift your weight around the bike for increased controllability when braking, accelerating and cornering.

  • alt

    Best-in-class KYB suspension

    Yamaha’s SSS (Speed Sensitive System) KYB front forks are widely regarded as being amongst the best designs available on a production motocross bike. With idealized low speed damping settings on both the front and rear suspension systems, the YZ125 delivers class-leading handling and excellent traction.

  • alt

    Powerful braking system

    The brakes on the YZ125 have been developed to handle the engine’s high performance. The 270mm diameter front disc and 240mm diameter rear disc are equipped with big-piston calipers that produce effective and controllable stopping power.

  • alt

    Single bolt seat fixing

    A single bolt seat fixing gives quick and easy maintenance, and the design of the aluminium rear frame is also contributing towards intake efficiency by enabling a smooth flow of fresh air into the airbox.

  • alt

    Duo-tone colours and new graphics

    The YZ125’s duo-tone colour scheme features a contrasting Icon Blue and dark blue design with blue wheels giving the bike a dynamic new look that perfectly complements the in-mould graphics and slimline bodywork.

Характеристики

Завантажити інформаційний листок
  • Двигатель
    Тип двигателя
    Liquid-cooled, 2-stroke, Forward-inclined single cylinder, Reed valve with YPVS
    Рабочий объем
    125cc
    Диаметр цилиндра х ход поршня
    54,0 mm x 54,5 mm
    Степень сжатия
    8,2-10,1 : 1
    Система смазки
    Premix
    Тип сцепления
    Wet, Multiple Disc
    Система зажигания
    CDI
    Система запуска
    Kick
    Трансмиссия
    Constant Mesh, 6-speed
    Главная передача
    Chain
    Система подачи топлива
    Keihin PWK38S/1
  • Шасси
    Рама
    Semi double cradle
    Вынос
    26º
    Трейл
    109 mm
    Система передней подвески
    Upside-down telescopic fork
    Система задней подвески
    Swingarm, link suspension
    Ход передней подвески
    300 mm
    Ход задней подвески
    315 mm
    Передний тормоз
    Hydraulic single disc, Ø270 mm
    Задний тормоз
    Hydraulic single disc, Ø240 mm
    Передняя шина
    80/100-21 51M
    Задняя шина
    100/90-19 57M
  • Габариты
    Общая длина
    2.135 mm
    Общая ширина
    825 mm
    Общая высота
    1.295 mm
    Высота сиденья
    980 mm
    Колесная база
    1.445 mm
    Минимальный дорожный просвет
    365 mm
    Снаряженная масса (включая полную заправку маслом и топливом)
    95 kg
    Емкость топливного бака
    7,0 L
    Объем масляного бака
    0,7 L
